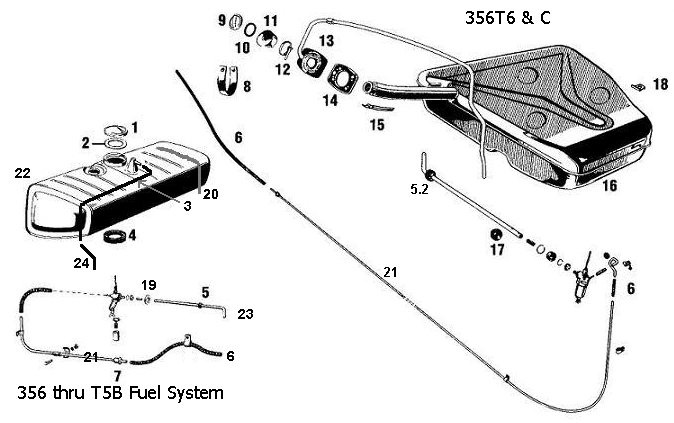

FUEL SYSTEM : FUEL TANKS , FUEL TANK GASKETS , DIRECT FUEL LINES , and ASSOCIATED HARDWARE
| Part Number | Description | Price | Add | |
|---|---|---|---|---|
FTK1.0  |
FUEL FILLER CAP , with GASKET , QUALITY AFTERMARKET COMPONENT EARLY VEHICLES , 356 , 356A , 356B T5 ONLY 644-201-270-00 Fits 356, A & BT5. |
644-201-270-00 | $26.50 |  |
| FTK1.1 |
FUEL FILLER CAP , with PORSCHE O.E.M. COMPONENT EARLY VEHICLES , 356 , 356A , 356B T5 ONLY PCG-201-270-00 |
PCG-201-270-00 | $ | |
| FTK2.0 |
GASKET FLAT , for EARLY FUEL FILLER CAP , CORK EARLY VEHICLES , 356 , 356A , 356B T5 ONLY 644-201-279-00 Fits 356, A & BT5. |
644-201-279-00 | $2.30 | |
| FTK2.1 |
GASKET FLAT , for LATE FUEL FILLER CAP , ORIGINAL BLUE GASKET 356B T6 , 356C , 912 1965 - 1969 644-201-279-00 Fits 356, A & BT5. |
NLA-201-279-00 | $14.65 | |
| FTK3.0 |
FUEL TANK VENT BREATHER HOSE SOLD BY THE METER , CUT TO THE CORRECT LENGTH 644-201-611-00 Fits 356, A & BT5. |
644-201-611-00 | $4.40 | |
| FTK4.0 |
SEAL for FUEL TANK DRAIN , EARLY VEHICLES , 356 , 356A , 356B T5 ONLY 644-504-922-00 Fits 356, 356A & BT5. |
644-504-922-00 | $4.60 | |
| FTK5.0 |
RUBBER GROMMET , FUET PETCOCK VALVE LEVER EARLY VEHICLES , 356 , 356A , 356B T5 ONLY 644-025-611-00 Fits 356, A & BT5. |
644-025-611-00 | $2.49 | |
| FTK5.1 |
FUEL ROD POSITION PLATE , 356 , 356A , 356B T5 ONLY 644-201-261-00 Fits Pre A thru BT5. |
NLA-201-261-00 | $33.75 | |
| FTK5.2 |
FUEL ROD POSITION GROMMET 644-201-261-06 Fits 356T6 & C. |
644-201-261-06 | $26.75 | |
| FTK6.0 |
FUEL HOSE , 7mm I.D. BRAIDED HOSE SOLD BY THE METER N-20-357-1 Fits all 356 & 912 Models. See FSO18.0 to order |
N 20 357 1 5M | $7.00 | |
| FTK7.0 |
RUBBER GROMMET , for PROTECTING THE FUEL LINE AT BODY CONTACT THRU HOLE PASSAGES , FRONT and REAR LOCATIONS , PORSCHE O.E.M. 914-356-201-00 Fits 356, A, B & C. |
914-356-201-00 | $7.95 | |
| FTK8.0 |
SUPPORT STRAP , SUPPORTS and SECURES FUEL TANK ASSEMBLY to VEHICLE CHASSIS 999-706-009-80 Holds fuel line in place under chassis. |
999-706-009-80 | $7.25 | |
| FTK9.0 |
FUEL FILLER CAP , with GASKET 356B T6 , 356C , 912 1965 - 1969 901-201-271-02 Fits 356T6 & C. |
901-201-271-02 | $29.50 | |
| FTK10.0 |
GASKET FLAT , for LATE FUEL FILLER CAP , CORK MATERIAL 356B T6 , 356C , 912 1965 - 1969 901-201-279-00 Fits 356T6 & C. |
901-201-272-00 | $2.45 | |
| FTK11.0 |
COLLAR , RUBBER FUEL FILLER NECK TUBE CONNECTS FUEL FILLER OPENING TUBE to FUEL TANK ASSEMBLY 644-201-177-00 Fits 356BT6 & C. |
644-201-177-00 | $13.25 | |
| FTK12.0 |
METAL STRAP with TIGHTENING KEY , 9mm WIDE X 450mm LONG SEALS and SECURES FUEL FILLER to FUEL TANK INPUT TUBE 999-512-104-02 Secures Filler Neck Collar. See HVS3.0 to order |
999-512-104-02 | $11.00 | |
| FTK14.0 |
DRAIN TUBE PLATE SUPPORTS and SECURES FUEL FILLER NECK TUBE to FUEL TANK INPUT TUBE , PORSCHE O.E.M. COMPONENT 644-201-173-00 Fits 356BT6 & C. |
644-201-173-00 | $74.00 | |
| FTK15.0 |
DRAIN TUBE CHANNEL , SUPPORTS THE FUEL TANK FILLER NECK TUBE 644-201-179-00 Fits 356BT6 & C. |
644-201-179-00 | $19.26 | |
| FTK16.1 |
FUEL TANK , COMPLETE , CORRECT GREY COLOR QUALITY AFTERMARKET REPRODUCTION 644-201-001-07 Fits BT6 & C. |
NLA-201-001-07 | $365.25 | |
| FTK17.0 |
RUBBER GROMMET , SEALING SLEEVE for FUEL PETCOCK LEVER 644-201-242-00 Fits 356BT6 & C. |
644-201-242-00 | $28.75 | |
| FTK18.0 |
BRACKET CLAMP SUPPORTS and RETAINES THE LATE FUEL TANK in POSITION , 4 Required 644-201-233-00 Fits 356BT6 & C. |
644-201-233-00 | $10.30 | |
| FTK20.0 |
METAL STRAP , SUPPORTS and RESTRAINS THE EARLY FUEL TANK 644-201-031-00 Fits 356 thru T5B. |
644-201-031-00 | $35.00 | |
| FTK21.0 |
METAL FUEL LINE , BULK NOT PRE-FORMED FUEL FEED LINE 75 inches in length X 5/16" O.D. X 0.257" I.D. with 0.028" WALL THICKNESS HIGH STRENGTH CORROSION RESISTANT SEAMLESS STEEL TUBING 5176K24 Fits all 356 models. |
5176K24 | $24.95 | |
| FTK21.1 |
METAL FUEL LINE , PRE-FORMED FUEL FEED LINE EARLY 356 VEHICLE FUEL TANK to EARLY VEHICLE FUEL PUMP 616-108-533-00 |
NLA-108-533-00 | $ | |
| FTK21.2 |
METAL FUEL LINE , PRE-FORMED FUEL FEED LINE EARLY or LATE 356 VEHICLE FUEL TANK to LATE VEHICLE FUEL PUMP 616-108-559-00 |
NLA-108-559-00 | $ | |
| FTK22.0 |
FUEL TANK , COMPLETE , BLACK COLOR 356 PRE A , 356A , 356B T-5 QUALITY AFTERMARKET REPRODUCTION 616-201-010-00 Fits 356 1950-60 356BT-5. |
NLA-201-010-00 | $593.50 | |
| FTK23.0 |
OPERATING ROD , BENT STEEL , for OPERATING FUEL PETCOCK VALVE EARLY VEHICLES , 1950-1960 : 356 PRE-A , 356A T-5 644-201-241-00 Fits 356A -T5B. |
NLA-201-241-00 | $82.25 | |
| FTK23.1 |
OPERATING ROD , BENT STEEL , for OPERATING FUEL PETCOCK VALVE LATE VEHICLES , 1960-1965 : 356B T-6 , 356C 644-201-241-06 |
NLA-201-241-06 | $ | |
| FTK24.0 |
VENT TUBE for EXCESSIVE VAPORS RELIEVES ANY BUILDUP of FUEL VAPORS in FUEL TANK 644-201-621-00 Fits 356 through T5. |
644-201-621-00 | $5.00 | |
| FTK24.1 |
RUBBER GROMMET , PROTECTS THE FUL TANK VENT TUBE 999-702-020-50 Fits 356 - BT5 |
999-702-020-50 | $1.15 | |
Prices and availability subject to change without notice.
