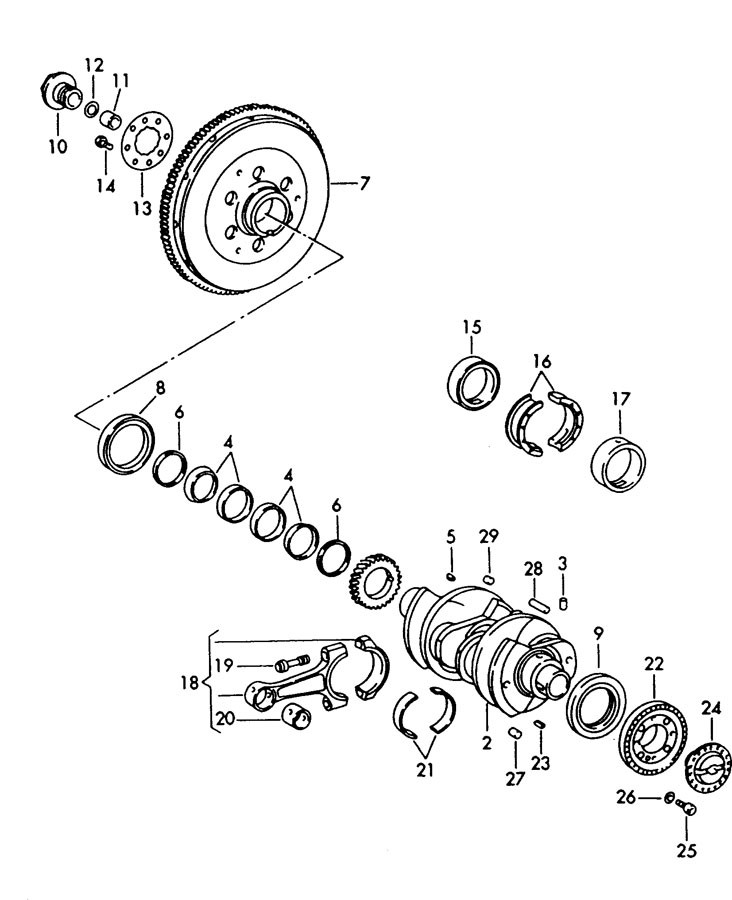

z-Crankshaft + Rods + Flywheel
| Part Number | Description | Price | Add | |
|---|---|---|---|---|
ZCD9.0 |
Pulley seal | $0.01 |  |
|
| ZCD11.0 |
Bevel Washer | $12.00 | |
|
| ZCD12.0 |
Crankshaft gear Roller Crank | $175.00 | |
|
| ZCD13.0 |
Locking Plate 36mm | $15.00 | |
|
| ZCD13.1 |
Locking Plate 41mm | $15.00 | |
|
| ZCD15.0 |
Main Bearing Set 587 Std 587-101+130-00 Fits 356B/C C2 |
VPH-101-130-00 | $500.00 | |
| ZCD15.1 |
Main Bearing Set .25 under 587-101+130-50 Fits 356B/C C2 |
VPH-101+130-50 | $550.00 | |
| ZCD15.2 |
Main Bearing Set .50 under 587-101+130-55 Fits 356B/C C2 |
VPH-101+130-55 | $575.00 | |
| ZCD15.3 |
Main Bearing #1 Fits 356B/C C2 | VPH-101-131-00 | $0.01 | |
| ZCD16.0 |
Main Bearing #2 Half sheel Fits 356B/C C2 | VPH-101-132-00 | $0.01 | |
| ZCD17.0 |
Main Bearing #3 Fits 356B/C C2 | VPH-101-133-00 | $0.01 | |
| ZCD18.0 |
rod set, type 692, plain bearing version, for 24 mm wrist pin | $1400.00 | |
|
| ZCD18.1 |
rod set, type 587 | $1400.00 | |
|
| ZCD19.0 |
connecting rod screw for type 692 and 587/1 587-103-105-00 Fits 356A?B |
VPH-103-105-00 | $39.00 | |
| ZCD19.1 |
connecting rod screw for type 587/3 587-103-105-01 |
VPH 103 105 01 | $42.50 | |
| ZCD20.1 |
Bushing for Connecting Rod 587 587-103-103-00 |
VPH-103-103-00 | $0.01 | |
| ZCD22.0 |
Pulley Repro 547-02-105 |
3713c | $150.00 | |
| ZCD24.0 |
Pulley Bolt 587-103-103-00 Fits 692/587 |
3713b | $0.01 | |
| ZCD25.0 |
Hex Bolt | 900-067-006-02 | $1.49 | |
| ZCD25.0 |
lock washer | 900-027-013-01 | $0.95 | |
Prices and availability subject to change without notice.
