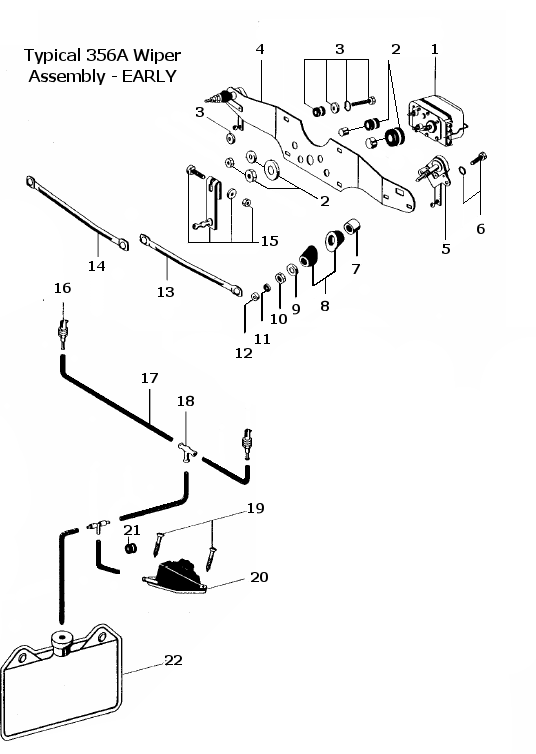

Windshield Wiper Assembly - Early
| Part Number | Description | Price | Add | |
|---|---|---|---|---|
WWE1.0 |
Motor, 6v - SWF or Bosch. Used only, no reproductions available currently. Fits 356A - BT5. Market value. Check for availability. |
$0.00 |  |
|
WWE1.1 |
Armature, 12V. Converts 356A-356B T-5 wiper motors to 12 volts. For SWF motors only, NOT Bosch. |
NLA-628-001-00 | $58.70 | |
| WWE2.0 |
Mounting Kit, Wiper Motor. Contains 2 small grommets & 1 large grommet for motor mounting to bracket. | $15.00 | |
|
| WWE3.0 |
Mounting Kit, Wiper Assembly Chassis. | $12.00 | |
|
| WWE4.0 |
Wiper Assembly Chassis - Currently USED only. Fits 356A - BT5. Market value. Check for availability. |
644-628-251-00 | $0.00 | |
| WWE5.0 |
Windshield wiper gear box with set screw design. 2 Req'ed. Fits 356 up to 1959T2. |
NLA-628-025-00 | $114.15 | |
| WWE6.0 |
Mounting Kit, wiper gear boxes Contains 2 x M5x15 bolts & 2 x M5 washers. |
$0.00 | |
|
| WWE7.0 |
Spacer, aka "distance roll". 2 Req'ed. | 644-628-261-00 | $0.00 | |
| WWE8.0 |
Grommet Set. INNER & OUTER for wiper shaft. 2 Req'ed. Fits 356, A & BT5 Coupe & Cabriolet. |
NLA-628-292-00 | $11.00 | |
| WWE8.1 |
Inner & outer grommet set for wiper shaft, 2 Req'ed. Fits Speedster, Convertible D, Roadster. |
NLA-628-292-40 | $18.30 | |
| WWE9.0 |
Retaining Cap. 2 Req'ed. Fits 356, A & BT5. | 644-628-295-00 | $6.75 | |
| WWE10.0 |
Nut. 2 Req'ed. Fits 356, A & BT5. |
NLA-628-296-00 | $7.10 | |
| WWE11.0 |
Rubber Washer. 2 Req'ed. Fits 356, A & BT5. |
NLA-628-297-00 | $1.55 | |
| WWE12.0 |
End Cap. 2 Req'ed. Fits 356, A & BT5. |
644-628-298-00 | $11.25 | |
| WWE13.0 |
Joint Rod - LEFT Fits SWF model wiper motor. | 644-628-021-00 | $0.00 | |
| WWE13.1 |
Joint Rod - LEFT Fits Bosch model wiper motor | 644-628-021-10 | $0.00 | |
| WWE14.0 |
Joint Rod - RIGHT Fits SWF model wiper motor. | 644-628-023-00 | $0.00 | |
| WWE14.1 |
Joint Rod - RIGHT Fits Bosch model wiper motor. | 644-628-024-10 | $0.00 | |
| WWE15.0 |
Crank Fits SWF model wiper motor. | 644-628-021-00 | $0.00 | |
| WWE15.1 |
Crank Fits BOSCH model wiper motor. | 644-628-024-10 | $0.00 | |
| WWE16.1 |
Spray Nozzle, 2 Req'ed. Fits 356, 356A (PRE T2). | NLA-628-741-00 | $20.00 | |
| WWE16.2 |
Spray Nozzle, 2 Req'ed. Fits 356BT5. | 644-628-741-41 | $47.50 | |
| WWE17.0 |
Washer Hose, BLACK. Sold by the meter. 3 meters is needed for the complete system Fits 356, 356A & B. |
NLA-628-733-05 | $3.75 | |
| WWE18.0 |
T-Piece. Fits all 356 Models. | 644-628-745-00 | $8.35 | |
| WWE19.0 |
Mounting Kit, foot pump. Contains 2 x M4x25 screws. | 900-022-002-00 | $1.00 | |
| WWE20.0 |
Foot Pump. Fits 356A, B & C. | NLA-628-073-06 | $36.55 | |
| WWE21.0 |
Grommet, 8x12x9 - 1 Req'ed. Use for shielding wiper hose as it passes through trunk sheet metal. |
999-702-020-50 | $1.15 | |
| WWE22.0 |
Washer Bag, Blue. 1 Req'ed. Pick up tube NOT included. Fits 356T1 through BT5. | 644-628-720-00 | $38.50 | |
Prices and availability subject to change without notice.
