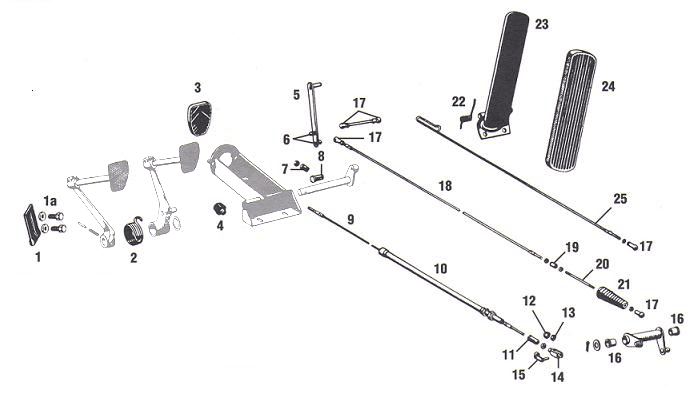

PEDAL ASSEMBLIES : VARIOUS COMPLETE DIFFERENT ASSEMBLIES : ACCELERATOR , BRAKE , and CLUTCH ACTUATION ; ASSOCIATED COMPONENTS , and ASSOCIATED HARDWARE
| Part Number | Description | Price | Add | |
|---|---|---|---|---|
PDL1.0  |
PEDAL STOP , SPONGE RUBBER For CLUTCH PEDAL ASSEMBLY 644-551-640-00 Fits ALL 356 Models 1950-1965 |
644-551-640-00 | $30.00 |  |
| PDL1.1 |
HARDWARE KIT For CLUTCH PEDAL ASSEMBLY 1 REQUIRED per VEHICLE 695-550-640-00 Fits ALL 356 Models 1950-1965 |
NLA-550-640-00 | $1.00 | |
| PDL2.0 |
SPRING , MOUSE TRAP TYPE For RETURN of CLUTCH PEDAL ASSEMBLY 356-23-322 Fits 356 Pre A 1950-1955 |
356-23-322 | $19.50 | |
| PDL2.1 |
SPRING , MOUSE TRAP TYPE For RETURN of CLUTCH PEDAL ASSEMBLY 644-23-305 Fits 356A , 356B , and 356C 1955-1965 |
644-23-305 | $25.00 | |
| PDL3.0 |
PEDAL PAD , SQUARE SHAPE TYPE For CLUTCH and BRAKE PEDAL ASSEMBLIES 2 REQUIRED per VEHICLE 356-23-105 Fits Earliest Pre A 356 Models 1948-1954 |
356-23-105 | $55.00 | |
| PDL3.1 |
PEDAL PAD , ROUNDED TAPERED SHAPE TYPE for CLUTCH and BRAKE PEDAL ASSEMBLIES 2 REQUIRED per VEHICLE 911-423-210-00 Fits 356A , 356B , 356C 1955-1965 , and 912 1965-1989 |
SIC-423-210-00 | $3.00 | |
| PDL3.2 |
PEDAL PAD , ROUNDED TAPERED SHAPE TYPEFor CLUTCH and BRAKE PEDAL ASSEMBLIES 2 REQUIRED per VEHICLE 914-423-210-00 Fits 356C 1963-1965 |
914-423-210-00 | $12.00 | |
| PDL4.0 |
PEDAL STOP BUFFER , ROUND PLUG For CLUTCH and BRAKE PEDAL ASSEMBLIES 2 REQUIRED per VEHICLE 901-423-528-00 Fits ALL 356 Models 1950-1965 |
901-423-528-00 | $7.00 | |
| PDL5.0 |
LEVER for ACCELERATOR PEDAL ASSEMBLY 1 REQUIRED per VEHICLE 644-23-010 Fits 356A , 356B , and 356C 1955-1965 |
644-23-010 | $65.00 | |
| PDL5.1 |
SHAFT for BELL CRANK for BRAKE and CLUTCH PEDAL ASSEMBLIES 356-23-158 Fits 356 PRE A 1950-1955 |
356-23-158 | $22.50 | |
| PDL5.2 |
SHAFT KIT for BELL CRANK for BRAKE and CLUTCH PEDAL ASSEMBLIES 3 ITEMS per KIT : 1 SHAFT , 1 BUSHING , and 1 SPLIT COTTER PIN 356-23-320 Fits 356 PRE A 1950-1955 |
356-23-320 | $135.00 | |
| PDL6.0 |
BALL SOCKET , for 8.0mm DIAM. BALL , M5.0mm RIGHT HAND THREAD For ACCELERATOR CARBURETOR LINKAGE 4 REQUIRED per VEHICLE 900-169-001-02 Fits ALL 356 Models and 912 1950-1989 |
NLA-169-001-02 | $8.40 | |
| PDL6.1 |
HEX NUT , LOCKING , M5.0mm RIGHT HAND THREAD LOCKS 8.0mm BALL SOCKET 4 REQUIRED per VEHICLE 900-076-004-02 Fits ITEM : PDL6.0 BALL SOCKET |
900-076-004-02 | $0.50 | |
| PDL6.2 |
LOCK WASHER , SPRING SPLIT TYPE , 5.0mm I.D. LOCKS 8.0mm BALL SOCKET 4 REQUIRED per VEHICLE 900-027-003-02 AKA N-012-005-3 Fits ITEM : PDL6.0 BALL SOCKET |
900-027-003-02 | $0.35 | |
| PDL7.0 |
NUT , SPECIAL LONG SLEEVE TYPE , 6.0mm RIGHT HAND THREAD AGAINST CABLE ANCHOR ADJUSTING NUT For CABLE of CLUTCH PEDAL ASSEMBLY at PEDAL END HAS ONE CONCAVE END and ONE FLAT END 644-23-220 Fits 356 1953-1955 , 356A 1955-1959 , 356B T5 1959-1962 and EARLY 356B T6 1962 |
644-23-220 | $10.50 | |
| PDL7.1 |
NUT , SPECIAL LONG SLEEVE TYPE , 7.0mm RIGHT HAND THREAD AGAINST CABLE ANCHOR Part No. 695-423-405-00 ADJUSTING NUT For of CABLE PEDAL ASSEMBLY at PEDAL END HAS TWO FLAT ENDS 695-423-407-00 Fits LATE 356B T6 1963 , 356C 1963-1965 , and 912 1965-1976 |
695-423-407-00 | $10.00 | |
| PDL8.0 |
ANCHOR PIN , RETAINER for CLUTCH CABLE This is the SWIVEL PIECE at the PEDAL SHAFT END . USE ADJUSTING NUT Part No. 644-23-220 . 644-23-219 Fits 356A 1955-1959 , 356B 1960-1963 , 356C 1963-1965 |
644-23-219 | $27.50 | |
| PDL8.1 |
ANCHOR PIN , RETAINER for CLUTCH CABLE This is the SWIVEL PIECE at the PEDAL SHAFT END . USE ADJUSTING NUT Part No. 695-423-407-00 . 695-423-405-00 Fits 356B 1960-1963 , 356C 1963-1965 |
695-423-405-00 | $15.50 | |
| PDL9.0 |
CLUTCH CABLE with HOUSING , 2085.0mm LONG 6.0mm THREAD PEDAL END and 6.0mm THREAD TRANSMISSION CLUTCH END QUALITY REPRODUCTION MANUFACTURED in GERMANY . 356-23-058 Fits 356 Pre A 1950-1955 |
NLA-23-058 | $57.50 | |
PDL9.1 |
CLUTCH CABLE , NO HOUSING , 2057.0mm LONG 6.0mm THREAD PEDAL END and 8.0mm THREAD TRANSMISSION CLUTCH END QUALITY REPRODUCTION For USE with TYPE 519 TWIN MOUNT and TYPE 644 TRANSMISSIONS 644-23-208-1 Fits 356 EARLY A 1955-1957 |
NLA-23-208-1 | $32.75 | |
| PDL9.2 |
CLUTCH CABLE with HOUSING , 2015.0mm LONG 6.0mm THREAD PEDAL END and 6.0mm THREAD TRANSMISSION CLUTCH END QUALITY REPRODUCTION 695-423-401-00 AKA 644-423-401-00 Fits 356 LATE A 1957-1959 , 356B T6 1963-1964 |
NLA-423-401-00 | $19.50 | |
| PDL9.3 |
CLUTCH CABLE with HOUSING , 2015.0mm LONG 7.0mm THREAD PEDAL END and 6.0mm THREAD TRANSMISSION CLUTCH END PORSCHE O.E.M. PART 695-423-401-00 AKA 644-423-401-00 Fits Late 356B T6 1964 , 356C 1964-1965 |
644-423-401-01 | $50.00 | |
| PDL9.4 |
CLUTCH CABLE with HOUSING , 2015.0mm LONG 7.0mm THREAD PEDAL END and 6.0mm THREAD TRANSMISSION CLUTCH END QUALITY REPRODUCTION 695-423-401-01 Fits Late 356B T6 1964 , 356C 1964-1965 |
NLA-423-401-01 | $24.00 | |
| PDL10.0 |
HOUSING for CLUTCH CABLE , 375.0mm LONG QUALITY REPRODUCTION MANUFACTURED in GERMANY 644-23-209 AKA NLA-423-321-01 Fits 356A 1955-1959 |
NLA-23-209 | $38.00 | |
| PDL10.1 |
HOUSING for CLUTCH CABLE , 375.0mm LONG PORSCHE O.E.M. PART 644-23-209 Fits 356A 1955-1959 |
644-23-209 | $80.00 | |
| PDL10.3 |
HOUSING for CLUTCH CABLE , 490.0mm LONG QUALITY REPRODUCTION 695-423-421-01 AKA 644-423-421-01 Fits 356B 1959-1963 and 356C 1963-1964 |
NLA-423-421-01 | $38.00 | |
| PDL11.0 |
BOOT , RUBBER For CABLE END of CLUTCH PEDAL ASSEMBLY 695-423-922-00 Fits 356A 1955-1959 , 356B 1959-1963 and 356C 1963-1964 |
695-423-922-00 | $22.00 | |
| PDL12.0 |
ADJUSTING NUT , ROUNDED HEX TYPE , 6.0mm RIGHT HAND THREAD ROUNDED END to MATE WITH CLUTCH ACTUATING ARM 356-23-213-6M Fits ALL 356 MODELS 1950-1965 |
356-23-213-6M | $14.50 | |
| PDL12.1 |
ADJUSTING NUT , ROUNDED HEX TYPE , 8.0mm RIGHT HAND THREAD ROUNDED END to MATE WITH CLUTCH ACTUATING ARM 356-23-213-8M Fits ALL 356 MODELS 1950-1965 |
356-23-213-8M | $12.50 | |
| PDL13.0 |
LOCKING NUT , HEX TYPE , M6.0mm For LOCKING 6.0mm ROUNDED END CLUTCH ADJUSTING NUT At CLUTCH ACTUATING ARM 900-076-010-02 Fits ALL 356 MODELS 1950-1965 , 912 1965-1986 |
900-076-010-02 | $0.40 | |
| PDL13.1 |
LOCKING NUT , HEX TYPE , M7.0mm For LOCKING 7.0mm ROUNDED END CLUTCH ADJUSTING NUT At CLUTCH ACTUATING ARM 900-076-013-03 Fits ALL 356 MODELS 1950-1965 , 912 1965-1986 |
900-076-092-01 | $2.50 | |
| PDL13.2 |
LOCKING NUT , HEX TYPE , M8.0mm For LOCKING 8.0mm ROUNDED END CLUTCH ADJUSTING NUT At CLUTCH ACTUATING ARM 900-076-013-03 Fits ALL 356 MODELS 1950-1965 , 912 1965-1986 |
900-076-013-03 | $0.65 | |
| PDL14.0 |
CLEVIS PIECE JOINS CLUTCH CABLE to CLUTCH PEDAL ASSEMBLY 6.0mm RIGHT HAND I.D. THREAD , USE PDL13.0 LOCKING HEX NUT 900-166-002-02 Fits 912 1965-1986 |
900-166-002-02 | $4.50 | |
| PDL15.0 |
CLEVIS PIN ASSEMBLY MOUNTED on SIDE STRIP 999-166-001-02 Fits ALL 356 MODELS 1950-1965 , 912 1965-1989 |
999-166-001-02 | $3.00 | |
| PDL16.0 |
BUSHING , WHITE NYLON , ORIGINAL TYPE For PEDAL BELL CRANK ASSEMBLY 2 REQUIRED per VEHICLE 914-423-211-00 Fits 356B 1960-1963 , 356C 1964-1965 |
914-423-211-00 | $2.40 | |
| PDL16.1 |
BUSHING , BRONZE For PEDAL BELL CRANK ASSEMBLY 2 REQUIRED per VEHICLE 695-423-211-00 Fits 356B 1960-1963 , 356C 1964-1965 , and 912 1965-1989 |
NLA-423-211-00 | $10.50 | |
| PDL16.2 |
BELL CRANK , 4 PIECE REPAIR KIT INCLUDES BOTH BALL PIN and MUSHROOM HEAD PIN to REPLACE NORMAL WEAR ITEMS 356-423-020-8M AKA 695-423-020-8M Fits 356 and 356A 1950-1959 |
NLA-423-020-8M | $28.00 | |
| PDL16.3 |
BELL CRANK , 4 PIECE REPAIR KIT INCLUDES BOTH BALL PIN and MUSHROOM HEAD PIN to REPLACE NORMAL WEAR ITEMS 644-423-020-00 AKA 901-423-020 Fits 356B 1960-1963 , 356C 1964-1965 , and 912 1965-1989 |
NLA-423-020-3M | $16.50 | |
| PDL16.4 |
BUSHING , WHITE NYLON , ORIGINAL TYPE For PEDAL BELL CRANK ASSEMBLY 2 REQUIRED per VEHICLE 911-423-341-02 Fits 912 1965-1969 |
911-423-341-02 | $3.75 | |
| PDL17.0 |
BALL SOCKET , STEEL 8.0mm BALL X M5.0mm RIGHT HAND THREAD For CARBURETOR ACCELERATION LINKAGE 4 REQUIRED per VEHICLE ( See : CBL4.0 ) 900-169-001-02 Fits ALL 356 MODELS 1950-1965 |
NLA-169-001-02 | $8.25 | |
| PDL17.1 |
PUSH ROD ASSEMBLY , for USE with ACCELERATOR CARBURETOR LINKAGE INCLUDES 2 BALL SOCKETS , LOCK NUTS , and LOCK WASHERS 6444-23-016 AKA 695-23-016 Fits ALL 356 MODELS 1950-1965 |
NLA-23-016 | $31.00 | |
| PDL18.0 |
PULL ROD , 520mm LONG For USE with FRONT ACCELERATOR LINKAGE ASSEMBLY QUALITY REPRODUCTION 695-423-014-00 Fits 356B 1960-1963 and 356C 1964-1965 |
695-423-014-00 | $40.00 | |
| PDL18.1 |
PULL ROD , 520mm LONG For USE with FRONT ACCELERATOR LINKAGE ASSEMBLY PORSCHE O.E.M. PART PCG-423-014-00 Fits 356B 1960-1963 and 356C 1964-1965 |
PCG-423-014-00 | $95.00 | |
| PDL19.0 |
CABLE CONNECTOR , STEEL THREADED EXTENDED HEX NUT TYPE For USE with ACCELERATOR CABLE ASSEMBLY , 1 REQUIRED per VEHICLE 695-423-135-00 Fits 356B T5 LATE 1961-1963 and 356C 1964-1965 |
695-423-135-00 | $10.50 | |
| PDL19.1 |
CABLE CONNECTOR , ENCLOSED RUBBER / STEEL PLATE TYPE For USE with ACCELERATOR CABLE ASSEMBLY MUST USE SHORT 92.0mm LONG BELL CRANK ROD Part No. 695-423-133-01 1 REQUIRED per VEHICLE 695-423-135-00 Fits ALL 356 1950-1965 , 912 1965-1989 |
SIC-423-081-02 | $19.00 | |
| PDL19.2 |
CABLE CONNECTOR , ENCLOSED RUBBER / STEEL PLATE TYPE For USE with ACCELERATOR CABLE ASSEMBLY MUST USE SHORT 92.0mm LONG BELL CRANK ROD Part No. 695-423-133-01 1 REQUIRED per VEHICLE 695-423-135-00 Fits ALL 356 1950-1965 , 912 1965-1989 |
695-423-135-00 | $135.00 | |
| PDL20.0 |
LINKAGE CONNECTING PULL ROD , STEEL ROD THREADED AT EACH END For USE with ACCELERATOR CABLE ASSEMBLY , 1 REQUIRED per VEHICLE 695-423-133-00 Fits Late 356B T6 1964 , 356C 1964-1965 |
NLA-423-133-00 | $15.00 | |
| PDL21.0 |
BOOT , RUBBER , for CLUTCH CABLE ACCELERATION LINKAGE CONNECTING ROD See PDL20.0 , for USE in 2 OTHER APPLICATIONS per VEHICLE 695-423-922-00 Fits ALL 356 MODELS 1950-1965 |
356-23-204 | $11.00 | |
| PDL22.0 |
SPRING , MOUSE TRAP TYPE RETURNS ACCELERATOR PEDAL 644-23-131 Fits ALL 356 MODELS 1950-1965 |
644-23-131 | $8.00 | |
| PDL23.0 |
PEDAL ASSEMBLY COMPLETE NOTE : The RUBBER PAD is NOT INCLUDED . This ASSEMBLY INCLUDES the HINGE and the RETURN SPRING . QUALITY REPRODUCTION MADE in GERMANY 644-23-011 Fits ALL 356 MODELS 1950-1965 |
NLA-23-011 | $105.00 | |
| PDL23.1 |
HEX HEAD BOLT , STEEL , 6.0mm X 45.0mm CAN ALSO be USED as an ACCELERATOR PEDAL STOP . N103492 Fits ALL 356 MODELS 1950-1965 |
N103492 | $1.40 | |
| PDL24.0 |
RUBBER PAD PIECE , for USE on PDL23.0 ACCELERATOR PEDAL ASSEMBLY QUALITY REPRODUCTION 644-23-326 Fits ALL 356 MODELS 1950-1965 |
NLA-23-326 | $18.00 | |
| PDL25.0 |
PULL ROD , 520.0mm LONG , at the REAR , for ACCELERATOR CONTROL SYSTEM 695-423-016-02 Fits ALL 356 MODELS EXCEPT EARLY 356B T5 1950-1959 and 1960-1965 |
NLA-423-016-02 | $29.50 | |
| PDL25.2 |
PULL ROD , 605.0mm LONG , at the REAR , for ACCELERATOR CONTROL SYSTEM 695-423-016-00 Fits ONLY EARLY 356B T5 1959-1960 |
NLA-423-016-00 | $27.50 | |
| PDL25.3 |
PULL ROD , 545.0mm LONG , at the REAR , for ACCELERATOR CONTROL SYSTEM 695-423-016-01 Fits ONLY LATE 356B T5 1960-MID 1962 |
NLA-423-016-01 | $27.50 | |
| PDL25.5 |
LINKAGE CONNECTING PULL ROD , STEEL ROD THREADED AT EACH END SPECIAL 5.0mm X 92.0mm LONG For USE with ENCLOSED ACCELERATOR CABLE CONNECTOR . 1 REQUIRED per VEHICLE 695-423-133-00 Fits ALL 356 1950-1965 , 912 1965-1989 |
695-423-133-01 | $15.25 | |
| PDL25.8 |
PULL ROD , at the REAR , for ACCELERATOR CONTROL SYSTEM SPECIAL CARRERA VEHICLE ACCEKERATOR PULL ROD PORSCHE O.E.M. PART 695-423-016-11 For USE with ALL 356 CARRERA VEHICLES : 1500 CARRERA , 1600 CARRERA , and CARRERA 2 1955-1965 . |
695-423-016-11 | $105.00 | |
Prices and availability subject to change without notice.
