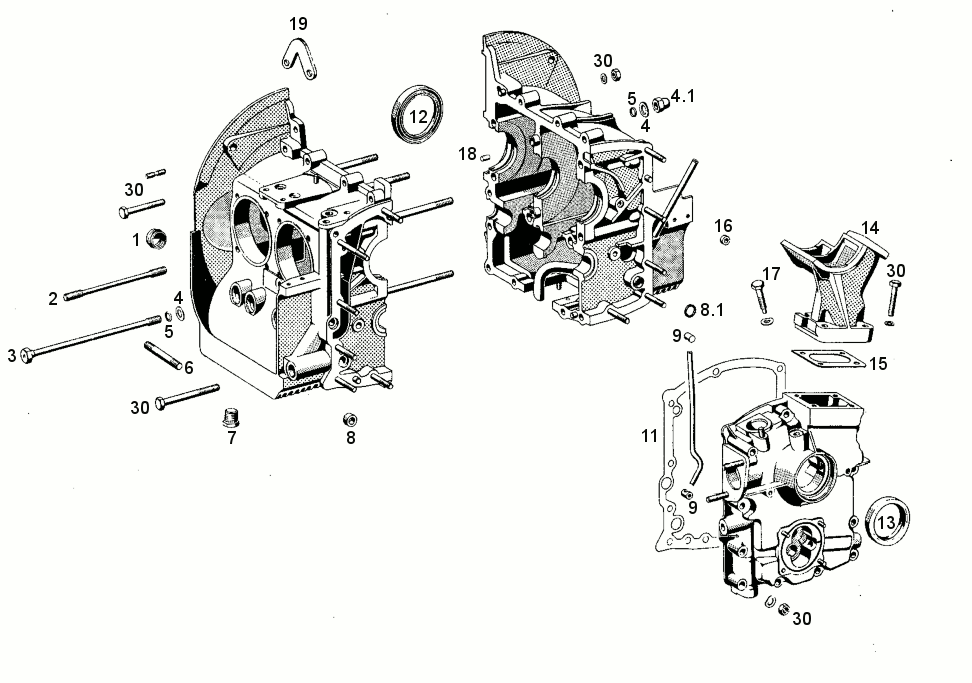

ENGINE - Misc Parts
| Part Number | Description | Price | Add | |
|---|---|---|---|---|
ENM1.0 |
PlugCAM COVER, COVERS CASE CAM OUTSIDE ACCESS AREA 539-01-132 Fits 356 & 912. |
539-01-132 | $16.38 |  |
| ENM2.0 |
CASE STUD , SECURES CYLINDER HEAD to CRANK CASE , 16 Required 539-01-118 Fits 356B, C & 912. |
539-01-118 | $27.79 | |
| ENM4.0 |
CASE WASHER , SPECIAL BEVELED WASHER , USED to SECURE CRANK CASE HALVES TOGETHER , 7 Required 616-101-191-00 Fits 356 & 912. |
616-101-191-00 | $7.71 | |
| ENM4.1 |
ACORN CASE NUT , SECURES CRANKCASE HALVES TOGETHER with CASE STUDS 6 Required SIC-070-004-02 Fits 356 & 912. |
SIC-070-004-02 | $9.20 | |
| ENM5.0 |
O-RING SEAL , SEALS CRANKCASE STUDS , BEVELED WASHERS , and ACORN NUTS FROM LEAKING ENGINE OIL , 7 Required 999-701-006-40 Fits 356 & 912. |
999-701-006-40 | $1.00 | |
| ENM7.0 |
OIL DRAIN PLUG , to DRAIN CRANKCASE OIL NLA-01-133 Fits 356 & 912 |
NLA-01-133 | $21.00 | |
| ENM8.0 |
RUBBER SEAL ( Short SMALL tube seal ) , for OIL GALLEY PORTS BETWEEN CASE COMPONENTS , 2 Required 616-01-123 Fits 3 piece case 1300 & 1500. Fits 1600 engines up to engine #67000. Fits 1600Super engines up to engine #81200. |
616-01-123 | $1.00 | |
| ENM8.1 |
RUBBER SEAL ( Short LARGE tube seal ) , for OIL GALLEY PORT BETWEEN CASE COMPONENTS , 1 Required 539-04-203 |
539-04-203 | $1.75 | |
| ENM9.0 |
RUBBER SEAL CIRCULAR , for OIL DIPSTICK TUBE to CRANK CASE , 2 Required 616-01-115 Fits 356B, C & 912. |
616-01-115 | $7.80 | |
| ENM11.0 |
GASKET FLAT , for TIMING COVER to ENGINE CASE 539-01-124 Fits 3 piece case 1300 & 1500. Fits 1600 engines up to engine #67000. Fits 1600 Super engines up to engine #81200. |
539-01-124 | $12.70 | |
| ENM11.1 |
GASKET FLAT , for TIMING COVER to ENGINE CASE 616-01-124-1 Fits 356A & B. |
616-01-124-1 | $6.79 | |
| ENM11.2 |
GASKET FLAT , for TIMING COVER to ENGINE CASE 616-101-391-00 Fits 356C & 912. |
616-101-391-00 | $4.75 | |
| ENM12.0 |
OIL SEAL RADIAL ( WHEEL BEARING TYPE ) , FLYWHEEL to CRANKSHAFT in CRANKCASE GENERIC Type of SEAL , NOT VITON MATERIAL 999-113-029-50 Fits 356 & 912. |
999-113-029-50 | $5.50 | |
| ENM12.1 |
OIL SEAL RADIAL ( WHEEL BEARING TYPE ) , FLYWHEEL to CRANKSHAFT in CRANKCASE VITON PREMIUM SEAL MATERIAL CR-692596 Fits 356 & 912. |
CR-692596 | $21.00 | |
| ENM13.0 |
OIL SEAL RADIAL ( WHEEL BEARING TYPE ) , FRONT PULLEY to CRANKSHAFT in CRANKCASE GENERIC Type of SEAL , NOT VITON MATERIAL 999-113-012-50 Fits 356 & 912. |
999-113-012-50 | $7.00 | |
| ENM13.1 |
OIL SEAL RADIAL ( WHEEL BEARING TYPE ) , FRONT PULLEY to CRANKSHAFT in CRANKCASE VITON PREMIUM SEAL MATERIAL 999-113-012-50 Fits 356 & 912. |
999-113-012-50 | $6.95 | |
| ENM14.0 |
GENERATOR STAND 539-01-145 Fits 356A & T5B |
539-01-145 | $136.50 | |
| ENM15.0 |
GASKET FLAT , GENERATOR STAND to ENGINE CRANKCASE TOP 539-01-125 Fits 356 & 912. |
539-01-125 | $3.15 | |
| ENM16.0 |
RUBBER SEAL ( Tube SeaL ) , FRONT COVER to ENGINE CRANKCASE FRONT 539-01-122 Fits 356 & 912. |
539-01-122 | $2.60 | |
| ENM17.0 |
BOLT LOCATING SPECIAL END LOCATING LOCATES Number 4 MAIN BEARING in ENGINE CASE 539-01-115 |
539-01-115 | $16.40 | |
| ENM18.0 |
DOWEL LOCATING SPECIAL LOCATING DOWEL PIN LOCATES Number 1 MAIN BEARING in ENGINE CASE 539-01-110 Fits 356A/B Normal, Super. |
539-01-110 | $8.60 | |
| ENM18.1 |
DOWEL LOCATING SPECIAL LOCATING DOWEL PIN LOCATES Number 1 MAIN BEARING in ENGINE CASE >616-101-172-00 Fits 356C, SC. |
616-101-172-00 | $15.55 | |
ENM20.0 |
GASKET SET , VALVE GRIND , for USE with SOLEX CARBURETORS 616-100-184-03 Fits 356 & 912. |
616-100-184-03 | $67.00 | |
| ENM20.1 |
GASKET SET , VALVE GRIND , for USE with ZENITH CARBURETORS 616-100-184-02 Fits 356 & 912. |
616-100-184-02 | $65.00 | |
| ENM20.4 |
BRACKET , COMING SOON XXX-XXX-XXX-XX |
XXX-XXX-XXX-XX | $0.01 | |
| ENM21.0 |
GASKET SET , ENGINE CASE OEM GermanL 616-101-901-01 Fits 356 & 912. |
616-101-901-01 | $80.00 | |
| ENM21.1 |
GASKET SET , ENGINE CASE , VITON PREMIUM SEAL MATERIAL 616-101-901-00-V Fits 356 & 912 Engines. |
616-101-901-00-V | $107.00 | |
| ENM30.0 |
HARDWARE KIT , ENGINE CASE includes THIRD PIECE COVER COMING SOON , XXX-XXX-XXX-XX |
XXX-XXX-XXX-XX | $0.01 | |
Prices and availability subject to change without notice.
