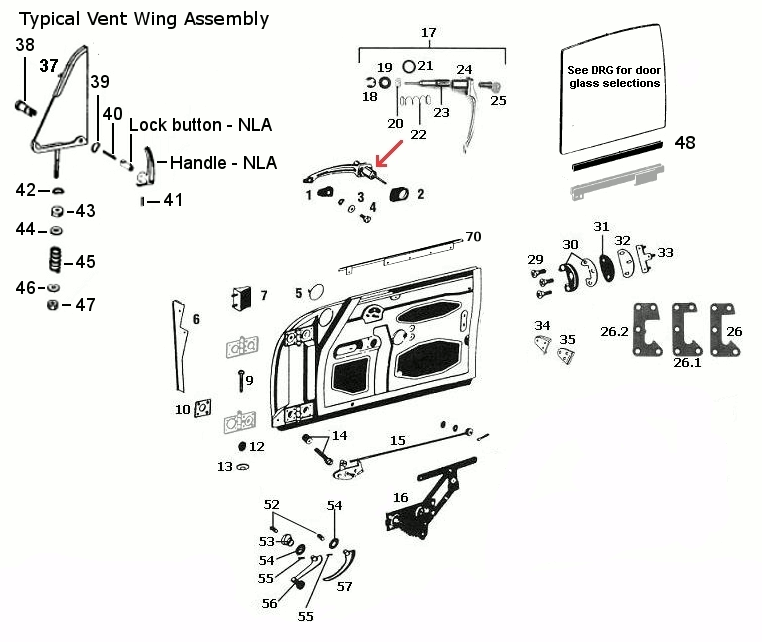

DOOR : INTERNAL PARTS and DOOR HARDWARE
| Part Number | Description | Price | Add | |
|---|---|---|---|---|
DRP1.0 |
Gasket, Small end of door handle. 2 Required 644-531-632-00 Fits ALL 356 MODELS 1950-1965 |
644-531-632-00 | $6.50 |  |
| DRP2.0 |
Gasket, Squared Edges. Large end of door handle NLA-531-006-00 Fits 356, 356A Pre T2. |
NLA-531-006-00 | $11.00 | |
| DRP2.1 |
Gasket, Rounded Edges. Large end of door handle. 2 Required 644-531-631-01 Fits 356AT2, B & C. |
644-531-631-01 | $5.75 | |
| DRP3.0 |
Washer, Door handle mounting screw N-011-665-3 Fits 356AT2, B & C. |
N-011-665-3 | $1.75 | |
| DRP4.0 |
Screw,stainless slotted pan head. For mounting small end of door handle. 2 Required 900-015-005-02 Fits 356AT2, B & C. |
900-015-005-02 | $0.50 | |
| DRP5.0 |
Mirror access cover, WHITE with plastic clips 644-504-761-00 Fits 356A. |
644-504-761-00 | $11.00 | |
| DRP5.1 |
Mirror access cover, BLACK with plastic clips 644-504-761-01 Fits 356B & C. |
644-504-761-01 | $11.25 | |
| DRP6.0 |
Hinge cover, Aluminum - LEFT 644-531-331-00 Fits all 356 Models. |
644-531-331-00 | $45.75 | |
| DRP6.1 |
Hinge cover, Aluminum - RIGHT 644-531-332-00 Fits all 356 Models. |
644-531-332-00 | $36.25 | |
| DRP6.2 |
Screw Set, Hinge cover. 1 set per car NLA-531-004-00 Order HSS9.0 |
NLA-531-004-00 | $1.85 | |
| DRP7.0 |
Wedge, rubber - Front Door stop. 2 Req'ed 644-531-035-00 Fits 356B 19& C. |
644-531-035-00 | $23.25 | |
| DRP8.0 |
Grease Fitting, 6mm. Door Hinges. Not Shown. 2 Req'ed 900-163-001-02 Fits 356B & C. |
900-163-001-02 | $0.81 | |
| DRP9.0 |
Pin, Door Hinge. 4 Req'ed NLA-531-305-00 Fits ALL 356 MODELS 1950-1965 |
NLA-531-305-00 | $21.15 | |
| DRP10.0 |
Shim, Door hinge. 1mm. 8 Req'ed 644-531-321-00 Fits ALL 356 MODELS 1950-1965 |
644-531-321-00 | $4.60 | |
| DRP12.0 |
Buffer Plug, Light switch. Center of Hinge. 2 Req'ed 644-531-309-00 Fits ALL 356 MODELS 1950-1965 |
644-531-309-00 | $2.75 | |
| DRP13.0 |
Plug, Rubber. Lower hinge pin access hole. 2 Req'ed 644-531-308-00 Fits ALL 356 MODELS 1950-1965 |
644-531-308-00 | $4.85 | |
| DRP14.0 |
Buffer, Door stop. Includes screw. 2 Req'ed 644-531-741-00 Fits ALL 356 MODELS 1950-1965 |
644-531-741-00 | $5.50 | |
| DRP15.0 |
Pull cable, Door latch. 2 Req'ed 644-531-561-01 Fits 356AT2, B & C. |
644-531-561-01 | $21.50 | |
| DRP16.0 |
Repair rivet, 10mm. Window Regulator NLA-542-048-00 |
NLA-542-048-00 | $5.85 | |
| DRP16.1 |
Repair rivet, 12mm. Window Regulator NLA-542-049-00 |
NLA-542-049-00 | $5.85 | |
| DRP16.2 |
Repair rivet, 9mm. Window Regulator NLA-542-050-00 |
NLA-542-050-00 | $5.85 | |
| DRP16.3 |
Repair pin, Window regulator. 26mm long pivot, slot PARALLEL to other end. 2 Req'ed. Steel pivot spring retainer replaces the original soft aluminum pivot NLA-542-044-00 |
NLA-542-044-00 | $25.80 | |
| DRP16.4 |
Repair pin, Window regulator. 23mm long pivot, slot PARALLELto other end. 2 Req'ed. Steel pivot spring retainer replaces the original soft aluminum pivot NLA-542-044-01 |
NLA-542-044-01 | $30.85 | |
| DRP16.5 |
Repair pin, Window regulator. 23mm long pivot, slot PERPENDICULAR to other end. 2 Req'ed. Steel pivot spring retainer replaces the original soft aluminum pivot NLA-542-044-02 |
NLA-542-044-02 | $33.35 | |
| DRP16.6 |
Repair pin, Window regulator. 26mm long pivot, slot PERPENDICULAR to other end. 2 Req'ed. Steel pivot spring retainer replaces the original soft aluminum pivot NLA-542-044-03 |
NLA-542-044-03 | $33.35 | |
| DRP16.7 |
REPAIR PIN , for WIINDOW REGULATOR . WITH 23mm Long Pivot Slot PERPENDICULAR to end with 18.5 diameter flange , 2 Required. Steel pivot spring retainer replaces the original soft aluminum pivot NLA-542-046-00 |
NLA-542-046-00 | $33.35 | |
| DRP16.8 |
SPRING , for WINDOW REGULATOR , 2 Required NLA-542-047-00 |
NLA-542-047-00 | $43.70 | |
| DRP16.9 |
19mm Special Bolt Kit. Repair piece for window regulator 644-542-043-00 Fits Roadster & Cabriolet. |
644-542-043-00 | $411.00 | |
| DRP16.10 |
18mm Special Bolt Kit. Repair piece for window regulator NLA-542-042-00 Fits 356A. |
NLA-542-042-00 | $11.80 | |
| DRP18.0 |
Retaining clip. 2 Req'ed 900-116-006-01 Fits 356AT2, B & C. |
900-116-006-01 | $0.68 | |
| DRP19.0 |
Fiber washer. 2 Req'ed 644-531-606-01 Fits 356AT2, B & C. |
644-531-606-01 | $2.15 | |
| DRP20.0 |
LOCKING PIECE , 2 Required 644-531-608-01 Fits 356AT2, B & C. |
644-531-608-01 | $6.50 | |
DRP21.0 |
LIP SEAL , Fits INSIDE GROOVE HANDLE CASTING , Quality Reproduction , 2 Required NLA-531-607-01 Fits 356AT2, B & C. Not sure which handle you have? Click the View Text Icon on the left. |
NLA-531-607-01 | $9.15 | |
| DRP21.1 |
LIP SEAL , Fits INSIDE GROOVE HANDLE CASTING , Original PORSCHE , 2 Required 644-531-607-01 Fits 356AT2, B & C. Not sure which one you have? Click the View Text Icon on the left. |
644-531-607-01 | $23.50 | |
| DRP22.0 |
SPRING , 2 Required 644-531-605-01 Fits 356AT2, B & C. |
644-531-605-01 | $3.75 | |
| DRP23.2 |
GRUB SCREW , HOLDS the LOCK CYLINDER , 2 Required 644-531-653-01 Fits 356AT2, B & C. |
644-531-653-01 | $0.85 | |
| DRP23.3 |
RECEIVER SET , for LOCK CYLINDER NLA-531-068-00 Fits 356AT2, B & C. |
NLA-531-068-00 | $95.90 | |
| DRP23.4 |
LOCK CYLINDERS , PAIR of LEFT & RIGHT , INCLUDES KEYS and BOTH GRUB SCREWS ORIGINAL PORSCHE PORSCHE : PCG-531-650-00 Fits 356AT2, B & C. |
PCG-531-650-00 | $469.25 | |
| DRP23.5 |
SEAL , for LOCK CYLINDER RECEIVER , 2 Required NLA-531-609-01 Fits all late model lock tumblers. NOT the "square handle" locks on early Pre A and T1s. |
NLA-531-609-01 | $7.50 | |
| DRP23.6 |
LOCK CYLINDER , LEFT ONLY , INCLUDES KEYS and GRUB SCREW ORIGINAL PORSCHE PORSCHE : 644-531-652-01 Fits 356T2 - C. |
644-531-652-01 | $197.25 | |
| DRP23.7 |
LOCK CYLINDER , RIGHT ONLY , INCLUDES KEYS and GRUB SCREW ORIGINAL PORSCHE PORSCHE : 644-531-651-01 Fits 356T2 - C. |
644-531-651-01 | $197.25 | |
| DRP23.10 |
LOCK CYLINDER , PAIR of LEFT & RIGHT , INCLUDES KEYS and BOTH GRUB SCREWS QUALITY REPRODUCTION NLA-531-950-00 Fits 356 AT2 - 356C. |
NLA-531-950-00 | $158.20 | |
| DRP24.0 |
DOOR HANDLE , OUTER . SQUARE Edge Style , CASTING ONLY , 2 Required NLA-52-020 Fits 356 Pre A & Early 356T1. |
NLA-52-020 | $155.25 | |
| DRP24.1 |
DOOR HANDLE , OUTER . ROUND Edge Style , CASTING ONLY , 2 Required NLA-531-061-01 Fits 356AT2, B & C. |
NLA-531-061-01 | $182.60 | |
| DRP26.0 |
STRIKER PLATE , DOOR LOCK. 356-52-206 Coupe chassis #5002-11360 Cabriolet 5001-10269. |
356-52-206 | $43.00 | |
| DRP26.1 |
STRIKER PLATE , DOOR LOCK. 644-52-206 Coupe chassis #11361-53288 Cabriolet 60270-60779 Speedster 80001-82000. |
644-52-206 | $43.25 | |
| DRP26.2 |
STRIKER PLATE , DOOR LOCK. 644-531-701-00 Coupe chassis #53289-101692 Cabriolet chassis #60780-150000 Speedster chassis #82001-83791 |
644-531-701-00 | $41.25 | |
| DRP26.3 |
THREADED REINFORCEMENT PLATE , DOOR LOCK. 644-531-711-00 Fits 356, 356A (pre T2). |
644-531-711-00 | $17.50 | |
| DRP29.0 |
Screw Set, Striker plate. Set of 3 Phillips flat head, 2 sets Re'qed NLA-531-005-00 Fits late 356A, B & C. Order HSS12.0 |
NLA-531-005-00 | $3.70 | |
| DRP29.1 |
Screw Set, Striker plate NLA-531-009-00 Fits 356, 356A early 5-hole striker plate slotted, flathead machine screws. 1 set per car. Order HSS11.0 |
NLA-531-009-00 | $5.25 | |
| DRP30.0 |
Striker w/metal backing plate , LEFT 644-531-701-01 Fits 356AT2, B & C. |
644-531-701-01 | $68.50 | |
| DRP30.1 |
Striker w/metal backing plate , RIGHT 644-531-702-01 Fits 356AT2, B & C. |
644-531-702-01 | $68.50 | |
| DRP31.0 |
Fiber shim, under striker - 1mm. 2 Req'ed 644-531-723-00 Fits 356AT2, B & C. |
644-531-723-00 | $6.00 | |
| DRP32.0 |
Reinforcing plate. 2 Req'ed 644-531-713-00 Fits 356AT2, B & C. |
644-531-713-00 | $5.00 | |
| DRP33.0 |
Threaded plate. 2 Req'ed 644-531-710-01 Fits 356AT2, B & C. |
644-531-710-01 | $23.00 | |
| DRP34.0 |
Wedge RECEIVER, Aluminum 644-531-755-00 Fits 356, 356A. |
644-531-755-00 | $22.00 | |
| DRP34.1 |
SCREW SET , for RUBBER WEDGE NLA-531-100-00 1 Set per Car. Order HSS10.1 |
NLA-531-100-00 | $1.40 | |
| DRP35.0 |
RUBBER WEDGE , DOOR RECEIVER , 2 Required 644-531-751-00 Fits 356, 356A. |
644-531-751-00 | $8.25 | |
| DRP35.1 |
Screw set, aluminum wedge receiver NLA-531-101-00 Fits 356, 356A. Order HSS10.0 |
NLA-531-101-00 | $2.05 | |
| DRP37.0 |
Washer, Vent window Pivot. 2 Req'ed 95225A320 Fits ALL 356 MODELS 1950-1965 |
95225A320 | $0.50 | |
| DRP38.0 |
Stainless steel vent bolt. 2 Req'ed 644-542-558-00 Fits 356AT2, B & C. |
644-542-558-00 | $26.85 | |
| DRP40.0 |
Thrust spring. 2 Req'ed 644-542-555-00 Fits 356AT2, B & C. |
644-542-555-00 | $4.25 | |
| DRP41.1 |
Locating pin for Vent wing Handle 644-542-557-00 Fits all 356 Models with vent wing windows. |
644-542-557-00 | $1.20 | |
| DRP42.0 |
Spring washer. 2 Req'ed 900-028-004-01 Fits 356AT2, B & C. |
900-028-004-01 | $0.31 | |
| DRP43.0 |
Fiber washer. 2 Req'ed 644-542-563-00 Fits 356AT2, B & C. |
644-542-563-00 | $3.60 | |
| DRP44.0 |
WASHER CENTERING 644-542-564-00 Fits all vent window models. CURRENTLY UNAVAILABLE. |
644-542-564-00 | $4.00 | |
| DRP45.0 |
Thrust spring. 2 Req'ed 644-542-565-00 Fits 356AT2, B & C. |
644-542-565-00 | $6.60 | |
| DRP46.0 |
Guide shim. 2 Req'ed 644-542-567-00 Fits 356AT2, B & C. |
644-542-567-00 | $9.05 | |
| DRP47.0 |
Self Locking Nut. 2 Req'ed N-021-196-1 Fits 356AT2, B & C. |
N-021-196-1 | $1.60 | |
| DRP48.3 |
Rail seal. 2 Req'ed 644-542-491-41 Fits ALL 356 MODELS 1950-1965 |
644-542-491-41 | $22.85 | |
| DRP49.0 |
Door Panel Screws. 1 Set per car - Order HSS30.0 NLA-531-003-00 Fits ALL 356 MODELS 1950-1965 |
NLA-531-003-00 | $36.55 | |
| DRP52.0 |
Rubber plug. 4 Req'ed 644-531-691-00 Fits 356AT2, B & C. |
644-531-691-00 | $2.30 | |
| DRP53.0 |
SPRING , for WINDOW CRANK SYSTEM , 2 Required 644-542-473-00 Fits ALL 356 MODELS 1950-1965 |
644-542-473-00 | $2.90 | |
| DRP54.0 |
Escutcheon, BEIGE. 4 Req'ed 644-552-891-01 Fits 356T2 Coupe & Cabriolet. |
644-552-891-01 | $8.40 | |
| DRP54.1 |
Escutcheon, BLACK 644-552-891-02 For 356T5B through 356C. |
644-552-891-02 | $8.40 | |
| DRP54.3 |
Escutcheon, IVORY. 4 Req'ed NLA-552-891-00 For Pre 356A. |
NLA-552-891-00 | $7.00 | |
| DRP55.0 |
Roll Pins. Pack of 4 900-091-001-00 Fits ALL 356 MODELS 1950-1965 |
900-091-001-00 | $3.70 | |
| DRP56.0 |
CRANK HANDLE , for WINDOW , IVORY 644-542-470-00 Fits 356 & A |
644-542-470-00 | $147.50 | |
| DRP56.1 |
CRANK HANDLE , for WINDOW , BLACK 644-542-470-01 |
644-542-470-01 | $27.75 | |
| DRP57.0 |
DOOR HANDLE , INNER , CHROME 644-531-611-02 Fits 356AT2, B & C. |
644-531-611-02 | $36.75 | |
| DRP60.0 |
Spring. Door latch tension spring 644-531-542-00 |
644-531-542-00 | $5.00 | |
| DRP70.0 |
PROFILE TRIM , at DOOR TOP , Pair : LEFT and RIGHT , CHROME NLA-52-803 Fit 356 Coupe 1955 to 1959 with NO vent windows. |
NLA-52-803 | $410.90 | |
| DRP70.1 |
PROFILE TRIM , at DOOR TOP , Pair : LEFT and RIGHT , CHROME NLA-531-431-20 Fits 356 Cab 1956 to 1957 WITH NO vent windows. |
NLA-531-431-20 | $456.50 | |
| DRP70.3 |
PROFILE TRIM , at DOOR TOP , Pair : LEFT and RIGHT , CHROME NLA-531-431-41 Fits Convertible D & Roadster. |
NLA-531-431-41 | $410.90 | |
| DRP70.4 |
PROFILE TRIM , at DOOR TOP , Pair : LEFT and RIGHT , CHROME NLA-531-431-21 Fits 356 Cabriolet 1958 thru 1965. |
NLA-531-431-21 | $456.50 | |
| DRP80.0 |
MACHINE SCREW , M5 5mm X 10mm , Round Head Slotted SECURES LATCH MECHANISM to DOOR 999-148-005-04 Fits 356 - T6B. These are phillip head screws. Order HSS80.0 |
999-148-005-04 | $9.90 | |
| DRP90.0 |
Hinge Bolt for Quarter Window Latch. 2 Req'ed NLA-543-416-00 Fits all Coupes. |
NLA-543-416-00 | $17.70 | |
Prices and availability subject to change without notice.
