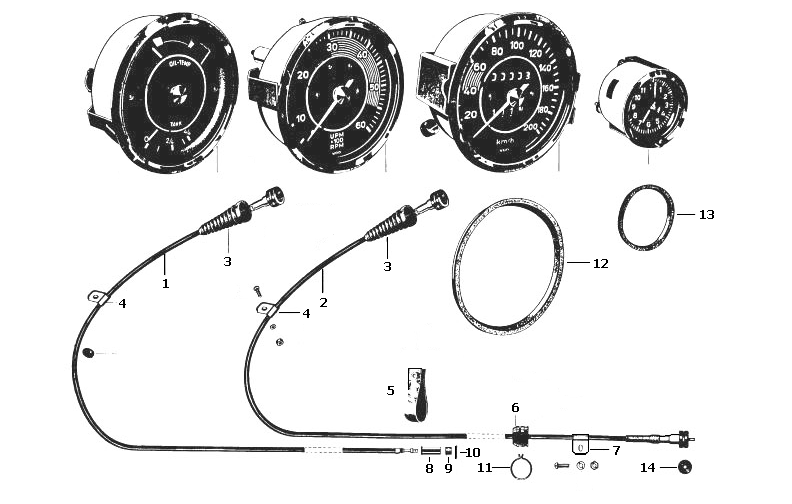

DASHBOARD : GAUGES , COMPONENTS , and ASSOCIATED HARDWARE
| Part Number | Description | Price | Add | |
|---|---|---|---|---|
DBD1.0  |
CABLE ASSEMBLY , SPEEDOMETER INCLUDES COVERING SLEEVE QUALITY REPRODUCTION 644-741-111-00 Fits ALL 356 Models 1950-1965 |
NLA-741-111-00 | $22.50 |  |
| DBD1.1 |
CABLE ASSEMBLY , SPEEDOMETER INCLUDES COVERING SLEEVE PORSCHE O.E.M. PART 644-741-111-00OE Fits ALL 356 Models 1950-1965 |
644-741-111-00OE | $97.50 | |
| DBD1.4 |
CABLE ASSEMBLY , TACHOMETER INCLUDES COVERING SLEEVE QUALITY REPRODUCTION 644-741-311-01 Fits 356B 1960-1963 and 356C 1964-1965 |
644-741-311-01 | $52.50 | |
| DBD2.0 |
CABLE ASSEMBLY , TACHOMETER INCLUDES BRAIDED STEEL COVERING and DAMPENING SLEEVE PORSCHE O.E.M. PART 644-741-311-01 Fits ALL 356 Models 1950-1965 |
644-741-311-00 | $72.50 | |
| DBD2.2 |
CABLE ASSEMBLY , TACHOMETER BARE CABLE INSERT ONLY QUALITY REPRODUCTION 644-741-903-00 Fits ALL 356 Models 1950-1965 |
NLA-741-903-00 | $35.00 | |
| DBD2.3 |
CABLE ASSEMBLY , TACHOMETER INCLUDES COVERING SLEEVE QUALITY REPRODUCTION 644-741-311-02 Fits 356B and 356C CARRERA 2 2000GT 1962-1965 |
NLA-741-311-02 | $52.50 | |
| DBD3.0 |
BOOT , RUBBER , for SPEEDOMETER and TACHOMETER DRIVE CABLES ( AT the INSTRUMENT BACK ) , and ALSO USED with HAND BRAKE CABLES 356-23-204 Fits ALL 356 Models 1950-1965 |
356-23-204 | $11.00 | |
DBD4.0 |
CLAMP , STEEL , 16.0mm Inside Diameter for SPEEDOMETER and TACHOMETER CABLES 3 REQUIRED per VEHICLE 999-511-036-02 Fits ALL 356 Models 1950-1965 |
999-511-036-02 | $8.00 | |
| DBD5.0 |
STRAP , 80.0mm LONG , Color GRAY For the SUSPENSION , SUPPORT , and RETENTION of the TACHOMETER and VARIOUS OTHER TYPES of CABLES on the TRANSAXLE ASSEMBLY 999-706-009-80 Fits ALL 356 Models 1950-1965 and 912 1965-1969 |
999-706-009-80 | $7.25 | |
| DBD6.0 |
GROMMET , RUBBER PROTECTS the SPEEDOMETER and TACHOMETER CABLES 644-025-622-01 Fits ALL 356 Models 1950-1965 and 912 1965-1969 |
644-025-622-01 | $8.00 | |
| DBD6.1 |
GROMMET , RUBBER PROTECTS the SPEEDOMETER and TACHOMETER CABLES 644-025-622-01 Fits ALL 356 Models 1950-1965 and 912 1965-1969 |
644-025-622-01 | $1.00 | |
| DBD7.0 |
CLAMP , STEEL , CADMIUM PLATED with CORRECT COLOR For SUPPORTING and RETAINING the SPEEDOMETER and the TACHOMETER CABLES 369-05-708 Fits ALL 356 Models 1950-1965 |
369-05-708 | $6.60 | |
| DBD8.0 |
GROMMET , RUBBER , SUPPORTS the AXLE END of the SPEEDOMETER CABLE This PART REPLACED A METAL COMPONENT , Part No. 644-741-241-00 . 644-741-121-00 Fits ALL 356 Models 1950-1965 |
644-741-121-00 | $6.00 | |
| DBD10.0 |
COTTER PIN , STEEL , 2.0mm X 10.0mm SECURES the SPEEDOMETER CABLE ASSEMBLY at ITS AXLE END TERMINATION 900-021-006-00 Fits ALL 356 Models 1950-1965 |
900-021-006-00 | $0.40 | |
| DBD11.0 |
CLAMP , STEEL WIRE RETAINING , 27.0mm Inside Diameter SECURES SUPPORT GROMMET to TACHOMETER CABLE PROTECTIVE OUTER COVERING 644-025-682-00 Fits ALL 356 Models 1950-1965 |
644-025-682-00 | $4.50 | |
| DBD12.0 |
MOUNTING RING , RUBBER For MOUNTING 95.0mm DIAMETER INSTRUMENTS in DASHBOARD USE with 95.0mm SPEEDOMETERS , TACHOMETERS , and VARIOUS COMBINATION TYPES of GAUGES 999-704-126-50 Fits ALL 356 Models 1950-1965 |
999-704-126-50 | $7.50 | |
| DBD12.4 |
MOUNTING RING , RUBBER For MOUNTING 75.0mm DIAMETER INSTRUMENTS in DASHBOARD USE with 75.0mm CLOCK , OIL THERMOMETER , and VARIOUS SMALL COMBINATION TYPES of GAUGES 999-704-125-50 Fits 912 1965-1969 |
999-704-125-50 | $7.50 | |
| DBD13.0 |
MOUNTING RING , RUBBER For MOUNTING 50.0mm DIAMETER CLOCK in DASHBOARD 999-704-124-50 Fits 356A , 356B , and 356C 1958-1965 |
999-704-124-50 | $7.50 | |
| DBD14.0 |
SHIM , FLAT STEEL WASHER TYPE INSTALLED at TACHOMETER CABLE DRIVE END 369-05-707 Fits ALL 356 Models 1950-1965 and 912 1965-1969 |
369-05-707 | $7.25 | |
| DBD15.0 |
SENDING UNIT , for OIL TEMPERATURE GAUGE , 6 Volt QUALITY REPRODUCTION with SPADE CONNECTION TERMINAL 616-107-806-00 Fits ALL 356 Models 1950-1965 |
616-107-806-00 | $48.00 | |
| DBD15.1 |
SENDING UNIT , for OIL TEMPERATURE GAUGE , 6 Volt PORSCHE O.E.M. PART with SPADE CONNECTION TERMINAL 616-107-806-00 Fits 356B 1960-1963 and 356C 1964-1965 |
616-107-806-00 | $257.50 | |
| DBD15.2 |
SENDING UNIT , for OIL TEMPERATURE GAUGE , 6 Volt PORSCHE O.E.M. PART with SCREW CONNECTION TERMINAL 616-107-805-02 Fits ALL 356 Models 1950-1965 |
616-107-805-02 | $250.00 | |
| DBD16.4 |
RECALIBRATE 6 VOLT OIL TEMPERATURE GAUGE to NEW TEMPERATURE SENDING UNIT CUSTOMER SUPPLIES REBUILDABLE TEMPERATURE GAUGE 616-107-805-02 Fits ALL 356 Models 1950-1965 |
$420.00 | |
|
| DBD16.6 |
CONVERT 6 VOLT OIL TEMPERATURE GAUGE to 12 VOLT ELECTRICAL SYSTEM INCLUDES a NEW 12 VOLT TEMPERATURE SENDING UNIT CUSTOMER TO SUPPLY A REBUILDABLE TEMPERATURE GAUGE 616-107-805-02 Fits ALL 356 Models 1950-1965 |
$600.00 | |
Prices and availability subject to change without notice.
