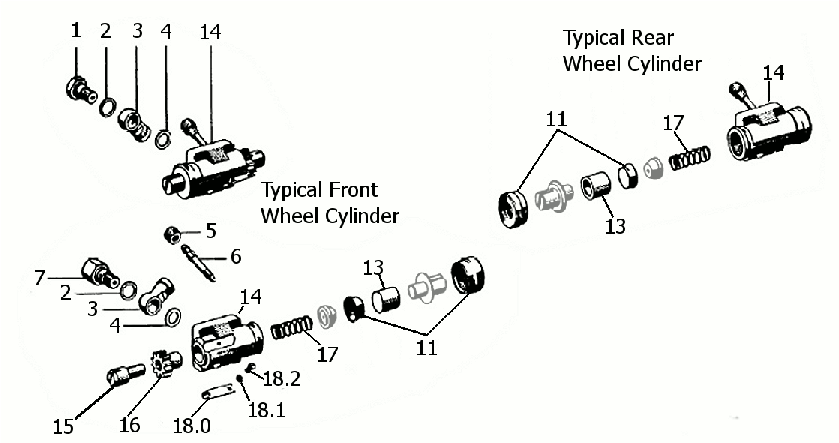

BRAKES - Wheel Cylinders
| Part Number | Description | Price | Add | |
|---|---|---|---|---|
BRW1.0  |
BANJO BOLT , Both FRONT UPPER and Both REAR Wheel Cylinders 4 Required 901-355-531-06 Fits 356, 356A, & 356B |
901-355-531-00 | $15.50 |  |
| BRW2.0 |
COPPER GASKET SEALING RING , 12mm X 16mm , 4 Required 900-123-004-20 Fits 356, 356A, & 356B |
900-123-005-20 | $1.55 | |
| BRW3.0 |
BANJO FITTING , Both FRONT UPPER and Both REAR Wheel Cylinders 4 Required 914-355-531-00 Fits 356, 356A, & 356B |
914-355-531-00 | $23.25 | |
| BRW4.0 |
COPPER GASKET SEALING RING , Between BANGO FITTING and WHEEL CYLINDER , 10mm X 16mm , 4 Required 900-123-004-20 Fits 356, 356A, & 356B |
900-123-004-20 | $1.55 | |
| BRW5.0 |
DUST CAP for BRAKE BLEEDER VALVE , ATE Mfg. , 6 Required 901-351-927-10 Fits 356, 356A, & 356B |
901-351-927-10 | $4.10 | |
| BRW5.1 |
DUST CAP for BRAKE BLEEDER VALVE , GENERIC , 6 Required 901-351-927-20 Fits 356, 356A, & 356B |
901-351-927-20 | $3.00 | |
| BRW6.0 |
BLEEDER SCREW , 45mm Long , Stainless Steel , 6 Required 695-351-524-00 Fits 356, 356A, & 356B |
695-351-524-00 | $19.00 | |
| BRW7.0 |
FITTING For BRAKE LINE to BANJO FITTING For FRONT LOWER Wheel Cylinders , 2 Required 999-135-002-02 Fits 356, 356A, & 356B |
999-135-002-02 | $12.00 | |
| BRW8.0 |
BANJO FITTING , For FRONT LOWER Wheel Cylinders , 2 Required 999-215-027-03 Fits 356, 356A, & 356B |
999-215-027-03 | $52.00 | |
| BRW9.0 |
COPPER GASKET RING SEAL , 10mm X 14mm X 1mm , 4 Required For Various Banjo Fittings and Bolts N-013-806-2 Fits 356, 356A, & 356B |
N-013-806-2 | $1.75 | |
| BRW10.0 |
WHEEL CYLINDER ASSEMBLY , Complete Quality Reproduction Fits REAR LEFT and REAR RIGHT , 2 Required NLA-352-513-01 Fits 356, 356A, & 356B |
NLA-352-513-01 | $48.50 | |
| BRW10.1 |
WHEEL CYLINDER ASSEMBLY , Complete Quality Reproduction Fits FRONT UPPER LEFT and FRONT LOWER RIGHT , 2 Required NLA-352-511-00 Fits 356, 356A, & 356B |
NLA-351-511-00 | $48.50 | |
| BRW10.2 |
WHEEL CYLINDER ASSEMBLY , Complete Quality Reproduction Fits FRONT LOWER LEFT and FRONT UPPER RIGHT , 2 Required NLA-352-512-00 Fits 356, 356A, & 356B |
NLA-351-512-00 | $48.40 | |
| BRW10.3 |
WHEEL CYLINDER VEHICLE SET , DRUM BRAKE , Quality Reproduction 6 Piece Vehicle Set NLA-695-KIT Fits 356, 356A, & 356B |
NLA-695-KIT | $250.00 | |
| BRW11.0 |
WHEEL CYLINDER REBUILD KIT , FRONT Wheel Cylinders 4 Required for both Front Wheels 644-351-912-00 Fits 356, 356A, & 356B |
644-351-912-00 | $18.50 | |
| BRW11.1 |
WHEEL CYLINDER REBUILD KIT , REAR Wheel Cylinders 2 Required for both Rear Wheels. 113-698-273 Fits 356, 356A, & 356B |
113-698-273 | $12.00 | |
| BRW13.0 |
WHEEL CYLINDER PISTONS , For ALL Wheel Cylinders , STAINLESS STEEL 12 Required , Will NOT CORRODE or SIEZE Like Steel or Aluminum Pistons NLA-351-521-00 Fits 356, 356A, & 356B |
NLA-351-521-00 | $15.50 | |
| BRW15.0 |
ADJUSTING SCREW ASSEMBLY , STAR NUT Type , 4 Required 911-352-090-00 Fits 356, 356A, & 356B |
911-352-098-00 | $28.00 | |
| BRW18.0 |
SPRING LOCK WASHER , To Lock Adjustment Assembly STAR NUT 900-027-001-01 Fits 356, 356A, & 356B |
900-027-001-01 | $0.18 | |
Prices and availability subject to change without notice.
