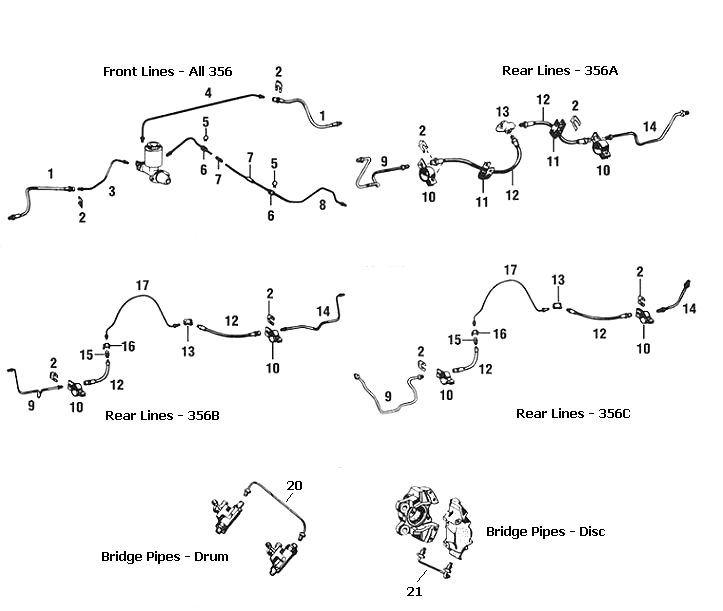

BRAKES - Lines & Bridge Pipes
| Part Number | Description | Price | Add | |
|---|---|---|---|---|
BRL1.0  |
BRAKE HOSE , High Pressure RUBBER , FRONT LEFT and RIGHT 2 Required 644-42-311 Fits 356A, B, & C |
644-42-311 | $27.50 |  |
| BRL2.0 |
HOSE RETAINING CLIP , 4 Required 113-611-715A Fits all 356 Models |
113-611-715A | $3.85 | |
| BRL3.0 |
BRAKE LINE , Steel , LEFT FRONT , DRUM BRAKES 644-42-313 Fits 356A , & B |
644-42-313 | $26.00 | |
| BRL3.1 |
BRAKE LINE , Steel , LEFT FRONT , DISC BRAKES 695-355-313-00 Fits 356C. |
695-355-313-00 | $15.50 | |
| BRL4.0 |
BRAKE LINE , Steel , RIGHT FRONT , DRUM and DISC BRAKES 644-42-314 Fits 356A, B, & C |
NLA-42-314 | $52.25 | |
| BRL5.0 |
CLAMPING CLIP for BRAKE LINE GROMET , 2 Required 914-355-652-00 Fits 356B , & C |
914-355-652-00 | $2.75 | |
| BRL6.0 |
GROMMET , For FRONT BRAKE LINES , 2 Required 914-355-651-00 Fits 356B, & C |
914-355-651-00 | $5.30 | |
| BRL7.0 |
HOSE PIECE , Short , 3 Required 914-355-691-00 Fits 356B, & C |
914-355-691-00 | $4.90 | |
| BRL8.0 |
BRAKE LINE , Steel , RUNS Through Center Tunnel Feeds REAR DRUM and DISC BRAKE SYSTEMS 695-352-602-01 Fits 356A, B, & C |
695-352-602-01 | $50.25 | |
| BRL8.1 |
BRAKE LINE , Steel , RUNS Through Center Tunnel , 356 Pre A Cars ONLY 1950mm LONG , Feeds REAR DRUM BRAKE SYSTEMS 356-42-023 |
NLA-42-023 | $16.45 | |
| BRL9.0 |
BRAKE LINE , Steel , LEFT REAR , DRUM BRAKES 644-42-305 Fits 356A, & Early 356B T5 |
644-42-305 | $32.00 | |
| BRL9.1 |
BRAKE LINE , Steel , LEFT REAR , DRUM BRAKES 695-352-605-00 Fits Late 356B T5, & T6 |
695-352-605-00 | $25.25 | |
| BRL10.0 |
AXLE CLAMP , Secures REAR BRAKE LINES to AXLE ASSEMBLY 45mm Inside Diam. , 2 Required 644-351-651-00 Fits 356A, B, & C |
NLA-351-651-00 | $20.05 | |
| BRL12.0 |
BRAKE HOSE , High Pressure RUBBER , REAR LEFT and REAR RIGHT 356-42-028 Fits 356, & 356A |
NLA-42-028 | $27.25 | |
| BRL12.1 |
BRAKE HOSE , High Pressure RUBBER , REAR LEFT and REAR RIGHT 2 Required 695-352-631-00 Fits 356B, & C |
NLA-352-631-00 | $32.00 | |
| BRL13.0 |
THREE WAY DISTRIBUTION CONNECTOR , DRUM and DISC BRAKES TUNNEL LINE to BOTH REAR BRAKE SYSTEMS , 1 Required 914-355-667-00 Fits 356A, B, & C |
NLA-355-667-00 | $15.25 | |
| BRL14.0 |
BRAKE LINE , Steel , LEFT REAR , DRUM BRAKES 644-42-305 Fits 356A & Early 356B BT5 |
644-42-305 | $32.00 | |
| BRL14.1 |
BRAKE LINE , Steel , RIGHT REAR , DRUM BRAKES 644-42-306 Fits 356A & 356B |
644-42-306 | $27.50 | |
| BRL14.2 |
BRAKE LINE , Steel , LEFT REAR , DISC BRAKES 695-355-605-00 Fits 356C |
695-355-605-00 | $17.75 | |
| BRL14.3 |
BRAKE LINE , Steel , RIGHT REAR , DISC BRAKES 695-355-606-00 Fits 356C |
695-355-606-00 | $22.00 | |
| BRL15.0 |
CONNECTOR PIECE , Female to Female Steel Line to High Pressure Hose , DRUM and DISC BRAKES 914-355-661-00 Fits 356B & C |
NLA-355-661-00 | $3.20 | |
| BRL16.0 |
RETAINING SPRING for BRAKE LINE , DRUM and DISC REAR BRAKES 803-611-715 Fits 356B & C |
803-611-715 | $2.25 | |
| BRL17.0 |
BRAKE LINE , Steel , REAR BRAKE SYSTEM , RUNS Over Transaxle DRUM and DISC BRAKES 695-352-601-00 Fits 356B & C |
695-352-601-00 | $27.50 | |
| BRL20.0 |
BRAKE LINE , BRIDGE , Steel , DRUM BRAKES Connects 2 FRONT Wheel Cylinders EACH SIDE , 1 Required Each Side 356-42-184 Fits 356, A, & B |
356-42-184 | $23.00 | |
| BRL21.0 |
BRAKE LINE , BRIDGE , Steel , DISC BRAKES , FRONT Connects BOTH Sides Of Each Front Caliper , 1 Required Each Side 901-351-925-10 Fits 356C |
901-351-925-10 | $11.90 | |
| BRL21.1 |
BRAKE LINE , BRIDGE , Steel , DISC BRAKES , REAR Connects BOTH Sides Of Each Rear Caliper , 1 Required Each Caliper 901-351-939-10 Fits 356C |
901-352-939-10 | $60.00 | |
Prices and availability subject to change without notice.
